LB - MG3 Green Laser Marking Machine For PCB QR Code Bar Code , Plastic Surface Marking

Name: LB MG3 Green Laser Marking Machine For PCB QR Code Bar Code Plastic Surface Marking
Brand: Leadboom
Price: 1 USD

LB - MG3 Green Laser Marking Machine For PCB QR Code Bar Code , Plastic Surface Marking Manufactures

Brand Name : Leadboom

Model Number : LB-MG3

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 15 set per month

Delivery Time : 10 working days

Packaging Details : Shrink Film + Plywood

Brand : Leadboom

Application : PCB with QR code, Bar code

Working area : 100x100mm

Power : 3W

Conveyor : Optional

Production line : can add it onto production line according to different function

Contact Now

LB-MG3 Green Laser Marking Machine for PCB QR code Bar code, Plastic Surface Marking

Machine Features:

Laser device belongs to cold light source, small heating area, and excellent beam quality to create ultra-fine marking effects.
Tidy borders, no explosion point, no thermal deformation, it can effectively increase the rate of finished products.
Laser device with stable performance, long service life, maintenance-free, no consumables, and low operation cost.
Adopted imported scanning galvanometer with fast marking, the smallest spot can reach 15um after focusing, it is extremely suitable for micro cutting and drilling.

Model	LB-MG3
Laser Power	3W
Laser Wavelength	532nm
Beam Quality	M²≤1.2
Laser Repetition Frequency	20KHz~200KHz
Working Area	110x110mm
Marking Speed	≤7000mm/s
Min. Line Width	0.03mm
Repeated Precision	±0.001mm
Cooling System	Air-cooling
Power Supply	220V / 50Hz
Power Consumption	0.8KW
Dimension	700x245x460mm

Standard Accessories (Portable Fiber Laser Marker)
(1) A set of 3W Green Laser Source
(2) A set of Digital Scanning System
(3) A set of high-speed Scan Lens (Singapore Ronar-Smith)
(4) 110mm x110mm Fiber Focus Lens (Singapore Ronar-Smith)
(5) A set of Laser Beam Expanders (Singapore Ronar-Smith)
(6) Motion control card
(7) A set of marking control system
(8) A set of marking software
(9) A pedal switch
(10) Working table(200mmX150mm)
(11) Laser power supply

Product Tags:

laser marking equipment

laser marking systems

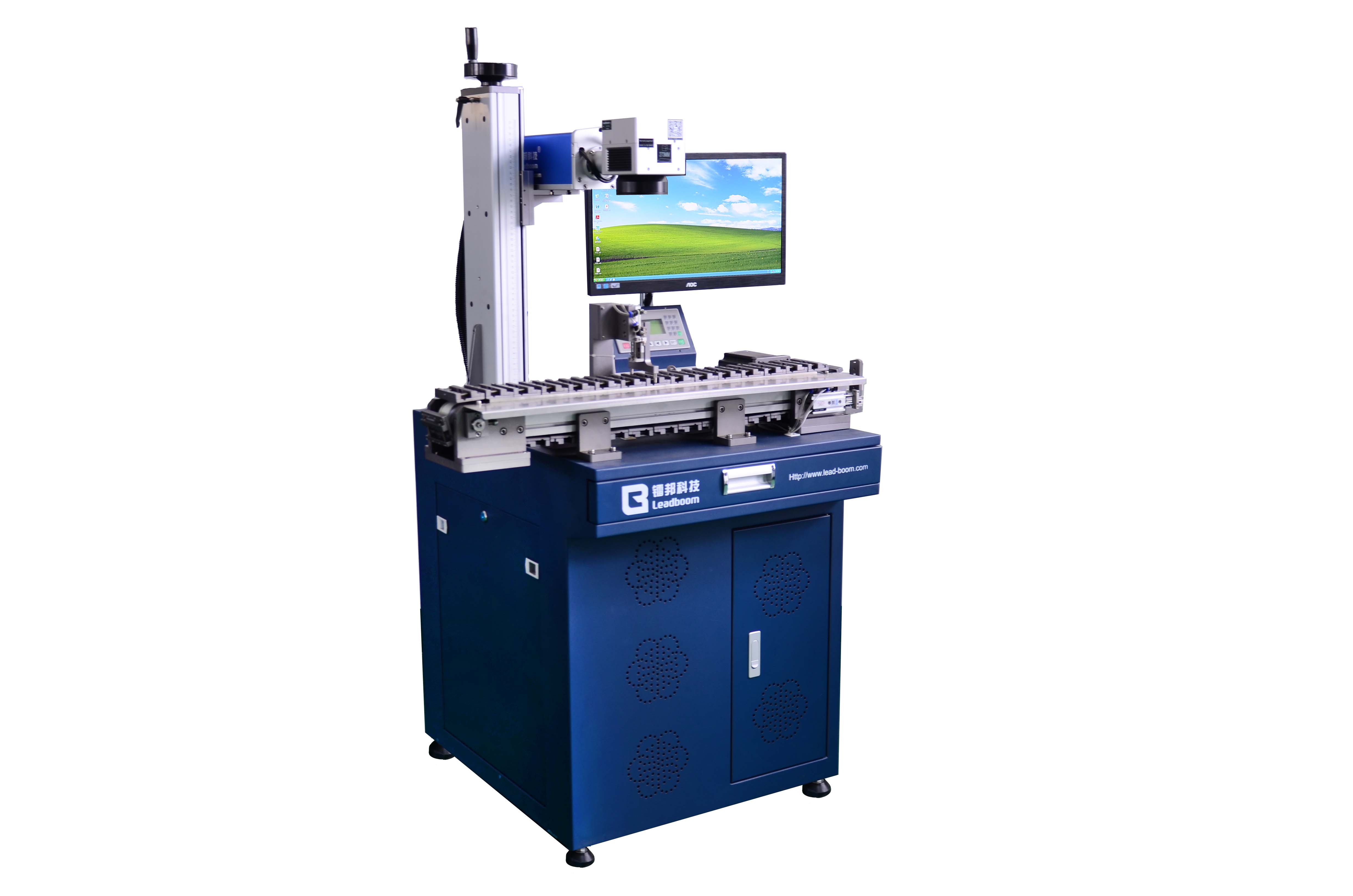

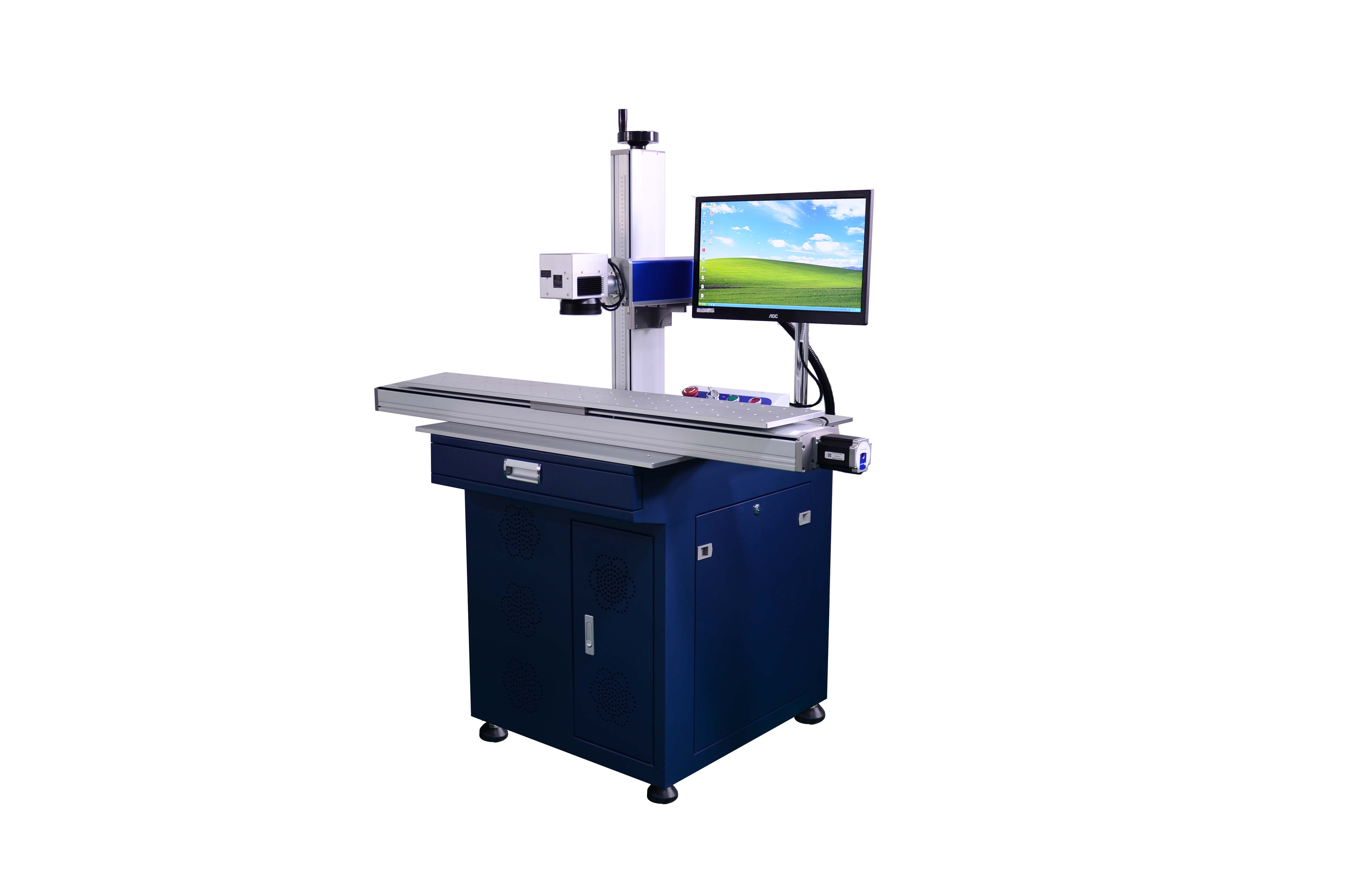

LB - MG3 Green Laser Marking Machine For PCB QR Code Bar Code , Plastic Surface Marking Images
